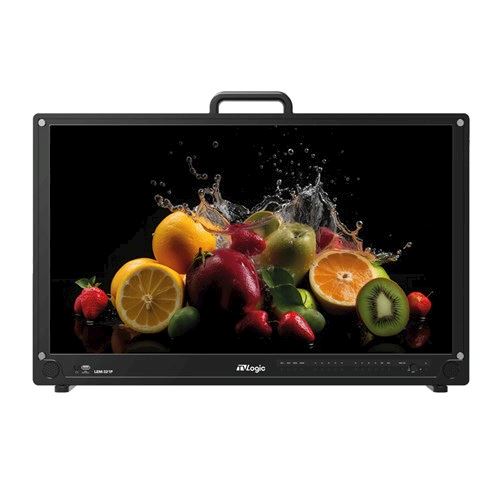

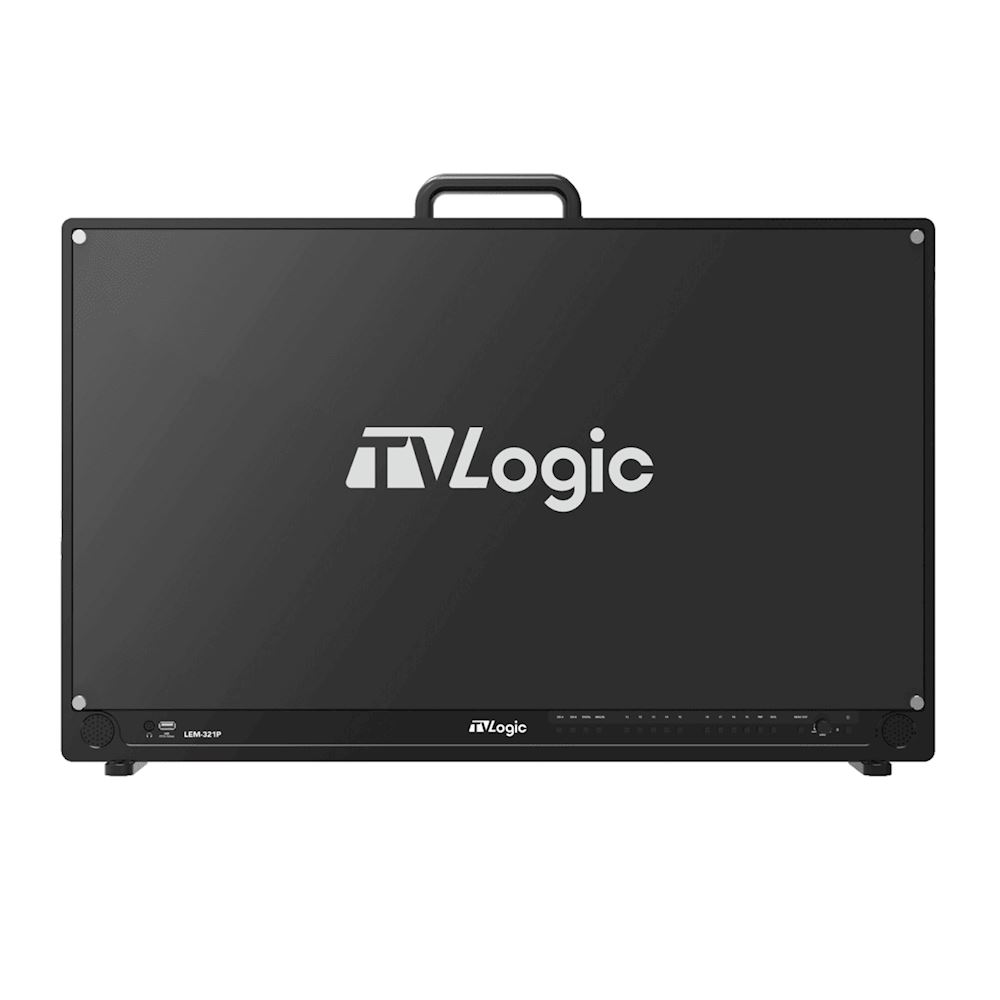

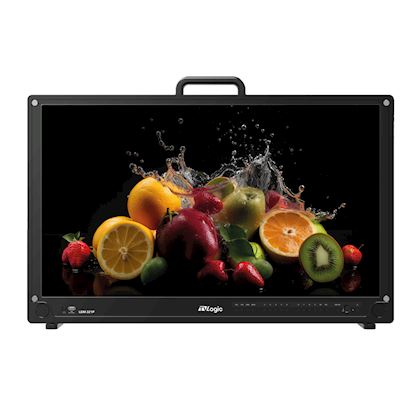

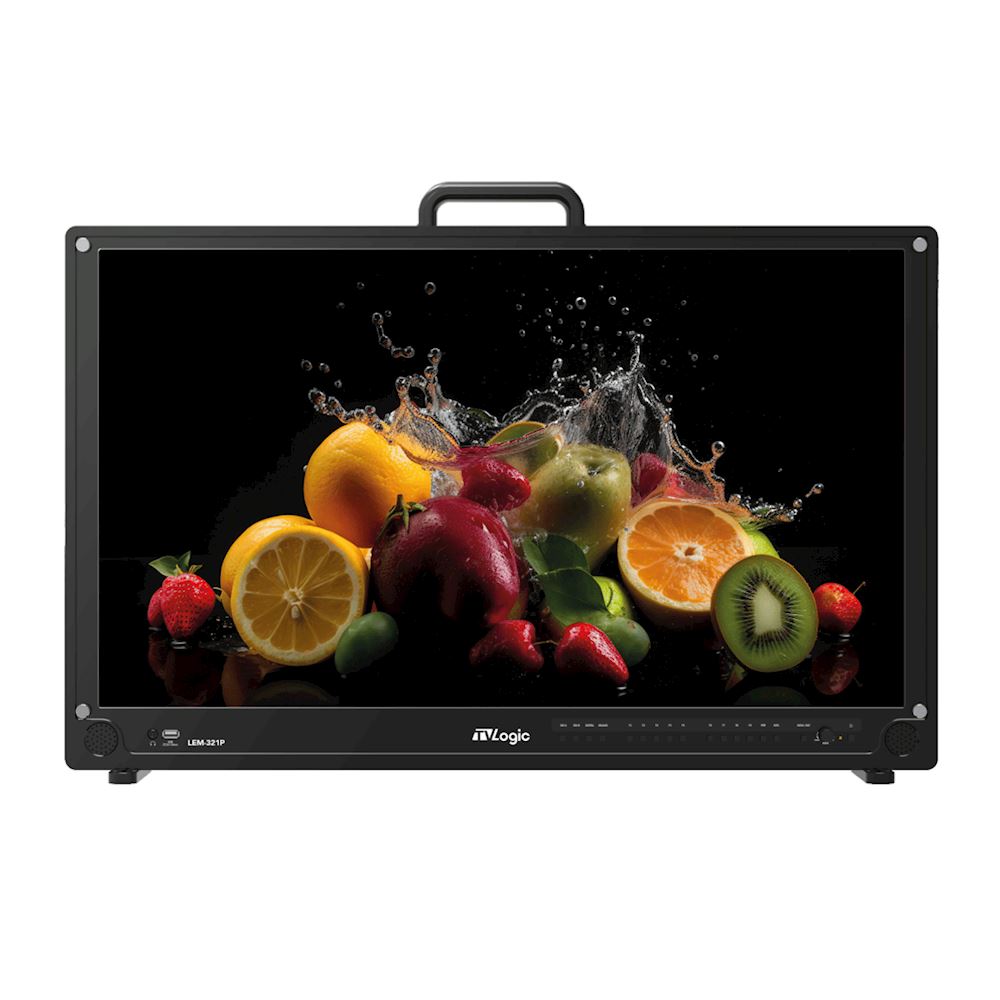

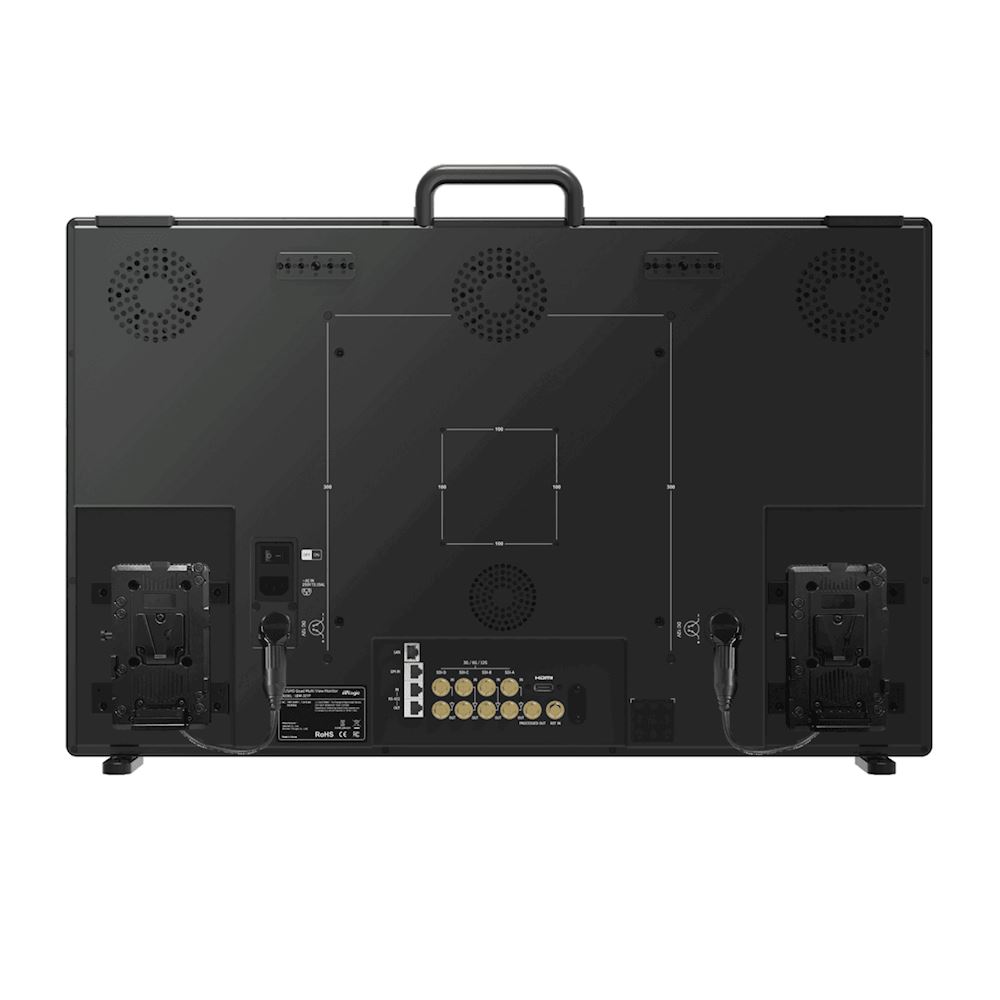

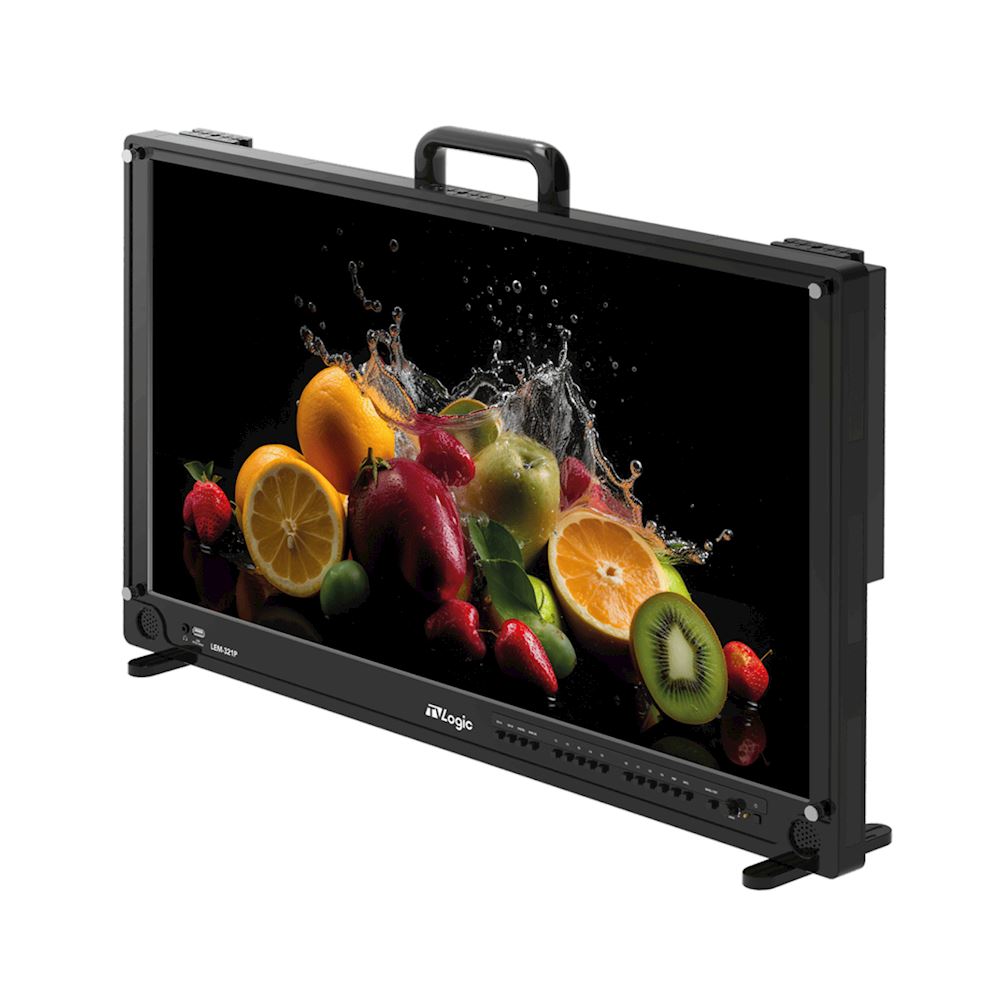

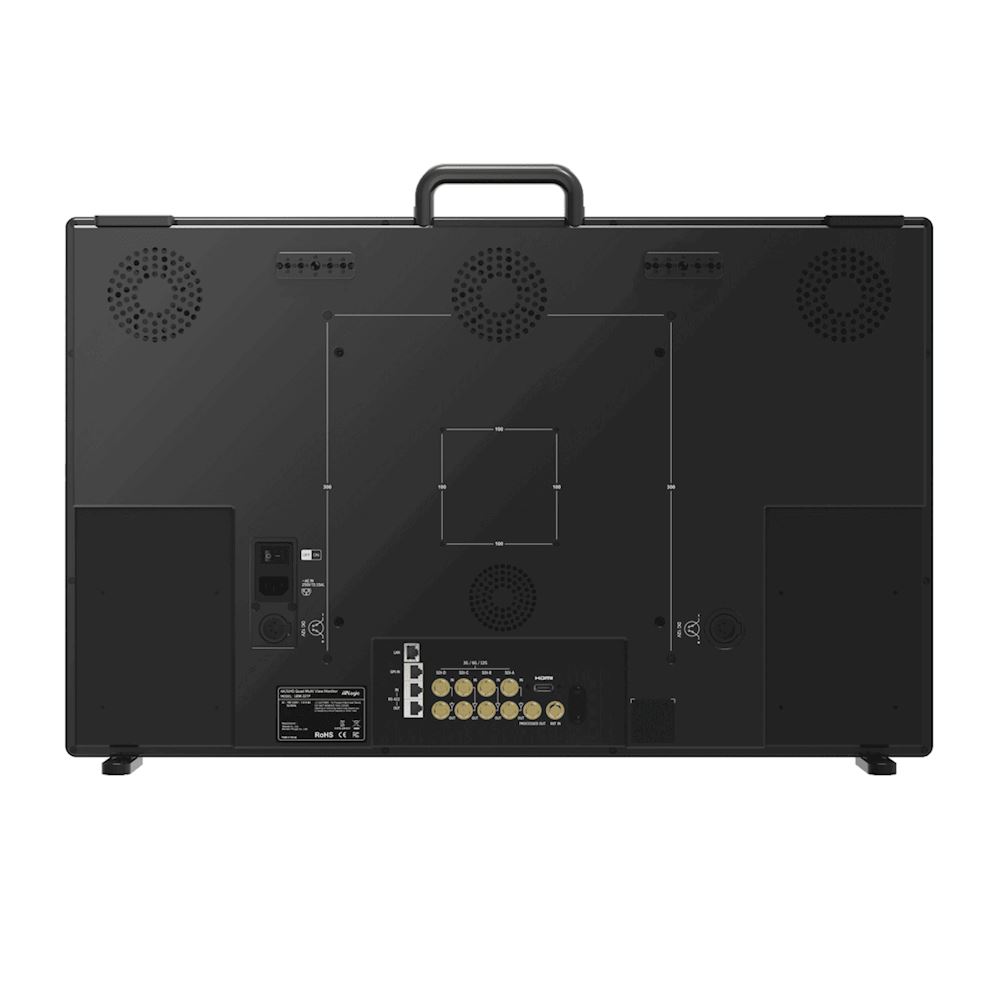

TVLogic LEM-321P

The LEM-321P is a 31.5" 4K OLED reference monitor delivering true black, accurate color, and professional connectivity for HDR, broadcast, and color-critical production environments.

The monitor is designed for HDR monitoring, color-critical production, and professional broadcast applications. Its self-emissive OLED panel delivers true black, infinite contrast, and exceptional color accuracy, ensuring precise image evaluation in any environment. Supporting HDR formats such as PQ and HLG, along with wide color gamut performance and 3D LUT capability, the LEM-321P meets the demands of modern production workflows. With comprehensive professional interfaces including 4 x 12G-SDI, HDMI, and Reference input, as well as support for AC and dual battery power, it offers maximum flexibility for both studio and field use.

Size: 31.5"

Resolution: 3840 x 2160 (16:9)

Pixel Pitch: 0.181.4(H) x 0.181.4(V) mm

Color Depth: 1.07B Colors (10 bit)

Viewing Angle: 178°(H) / 178°(V)

Luminance of white: 1000cd/m2

Contrast Ratio: 1,500,000 : 1

Display Area: 699.5(H) x 394.7(V) mm

Main Body Dimensions

Main Body: 763 x 530.8 x 130 (mm) / 30.03 x 20.89 x 5.11 (inch)

Weight: 10.4kg / 22.92lbs

Product Highlights

• 1000nits Peak Luminance
• 1,500,000 : 1 Contrast Ratio
• DCI-P3 Coverage 99%
• HDR EOTF (PQ, HLG)
• 12G-SDI Quad-View Display
• Image Capture & Overlay
• Custom 3D LUT Import
• Auto Detection of SDI Payload ID
• Waveform / Vector Scope / Histogram
• Audio Level Meter
• Closed Caption (CC-608, CC-708) in Multi Languages
• Timecode Display
• Marker
• Focus Assist / False Color
• Blue/Mono Only
• H-Flip, V-Flip
• Scan / Anamorphic
• Dynamic UMD / Tally
• Dual V-Mount or G-Mount Brackets (optional)
